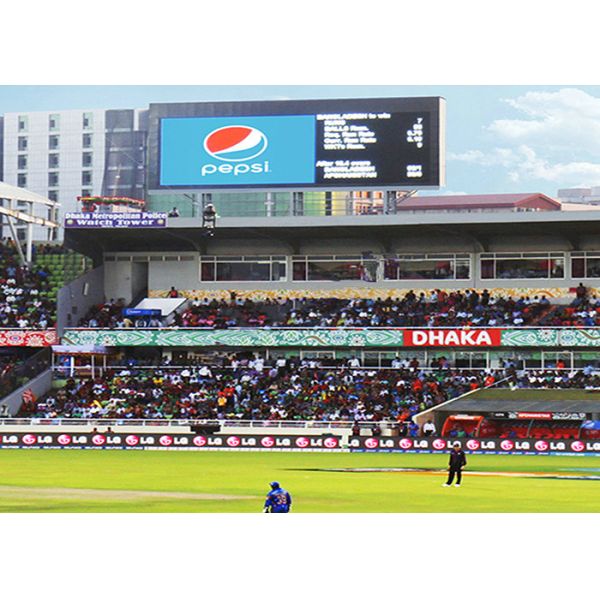

P8mm 1R1G1B SMD3535 Aluminum/ Iron Football Court Stadium LED Display
BSP Stadium Perimeter LED Series
FIFA Stadium Standard
Fast to Install and Dismantle
High Refresh Rate for Live Camera
Feature
1. Fast cooling--Excellent hest dissipation performance to protect the module circuit.
2. High Brightness--More than 1500nits and it can be sawn from long distance.
3. Good waterproof protection--Front is IP65 and back is IP54.
4. Cost Effective LED Display--Energy saving design, help you saving cost.
5. Strict Perfect anti-static precautions-- during manufacturing, static electric damage is the most serious problem.
Specifications
| | BSP-8 |
| Physical Pitch | 8mm |
| Pixel Configuration | SMD 3535 |
| Pixel Density | 15,625 pixels/m² |
| Module Dimensions(W*H)(mm) | 256*256 |
| Panel Dimensions(mm) | 1280*768*187 |
| NO. of Modules Per Panel (W*H) | 5*3 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Weight (kg/m²) | 70/50 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree
H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/
10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/
10%-90% |
| Physical Resolution of Module(W*H)(mm) | 32*32 |
| Physical Resolution of panel(W*H)(mm) | 160*96 |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |
Outdoor Rated
IP65 rating for front and rear
Suitable brightness adjustable for outdoor day and night
5500-8000 nits brightness
Superior Electrical Features
Vivid and brilliant colors
16 Bit signal processing, 2500-4000Hz refresh rate
Built-in data and power redundancy for ultimate reliability
IP65 rating for front and rear
Suitable brightness adjustable for outdoor day and night
5500-8000 nits brightness
Fast Installation and Easy Maintenance
Fast lock system design guarantees a quick & easy installation
Front and rear access
Fast access to modules, cables, power and data boxes
Versatile Dual Purpose Design
Removing the ground adjustable bracket and protection foam bumper can be transformed to be a square solid screen
Available for truss hanging, ground stacking, wall mounting
About us
Why choose BAKOVISION?
1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality
2.more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable.
After Sale Service
Warranty
We guarantee all our displays, modules, parts for TWO years. During this time, we will replace or amend all our goods for free if there is something wrong with them.We provide lifetime maintenance service and only charge for the cost of raw materials needed. We provide technology training for free, which contains operation and maintenance training of the LED screens in the factory.We also provide operation manual, software, test report and so on. Any associated CAD drawings on how to fix up the display. And some other expert suggestions will be provided for free.
