1280mmx960mm Outdoor P10.66 Sports Perimeter LED Display Screen for football game
Sports Perimeter Display Features
1. Portable die-casting Aluminum design of the panel,easy to install or disassemble.
2. For maintance,can do both front and rear service,by using magnetic to take off from front,by using screw to take off from back.
3. The die-casting aluminum material will strengthen heat dissipation.
4. Creative innovations to replace traditional IRON structure outdoor permanent LED screen With one more holder to hold up the screen, it can be widely used for outdoor applications.
5. Solid & light;
The cabinet is made of aluminum die-casting, very strong and light, only 35kg/sqm, while normal iron cabinet is 55kg/sqm;
Unique aluminum module frame, good for heat sink;
6. Multi-function display;
The back bracket is removable, means that you can easily take off bracket in 3 seconds, then it turns normal display for fixed installation or rental business;
7. Easy maintenance;
Front access module is available, so you can take off module easily;
Pure white color display always available, due to we use top rate Leds;
8. Different pitch display share one same cabinet frame;
pitch 2.6mm, 3.2mm, 5.33mm, 6.4mm, 8mm, 10.66mm, 12.8mm, 16mm share one cabinet frame of 1024*768mm, in case in future of update, you only need to change modules, so it helps you save money;

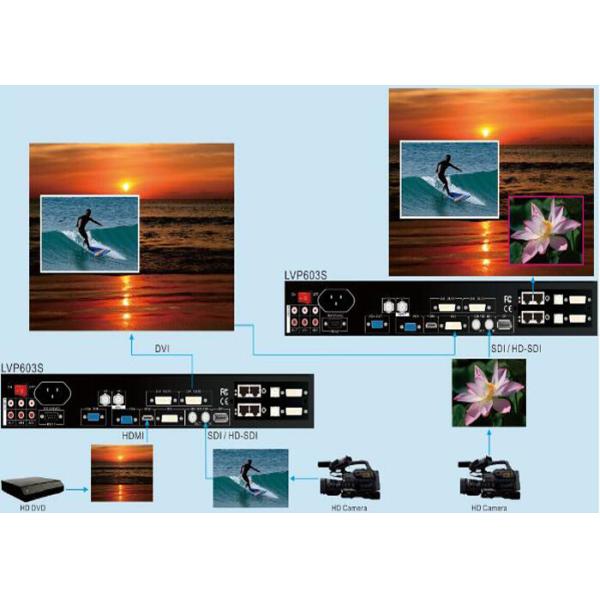

Sports Perimeter Display Diagrame
Advantages of BAKOVISION
1. We Use Top Rate LED to make best Led display screens, as well as best power supply, high quality signal & power cables, etc.
2. Strict Perfect anti-static precautions: during manufacturing, static electric damage is the most serious problem.
3. Use advanced processing technology, machinery guarantee for high-quality and long-life time products
4. Can be normally used under the temperature between -20 and +65 degree .
5. With production capacity of 8,000 m2 per month, we can make in-time delivery.
6. we can tailor our product according to our clients requirements;
| Pixel pitch | 10.66 mm |
| Pixel density(dots/m2) | 8800 |
| LED encapsulation | SMD 3535 |
| Module size(mm) | 512*256 |
| Cabinet weight (Kg) | 27.7 |
| Cabinet size(mm) | 1024*768 |
| Brightness (cd/㎡) | ≥5000 |
| View angle | 160°/ 140° |
| Refresh rate | ≥1920 Hz |
| Grey scale | 14~16 bit |
| Operating Temperature(℃) | -20~50 |
| Protection grade | IP65/IP54 |
| Service | Front/Rear |

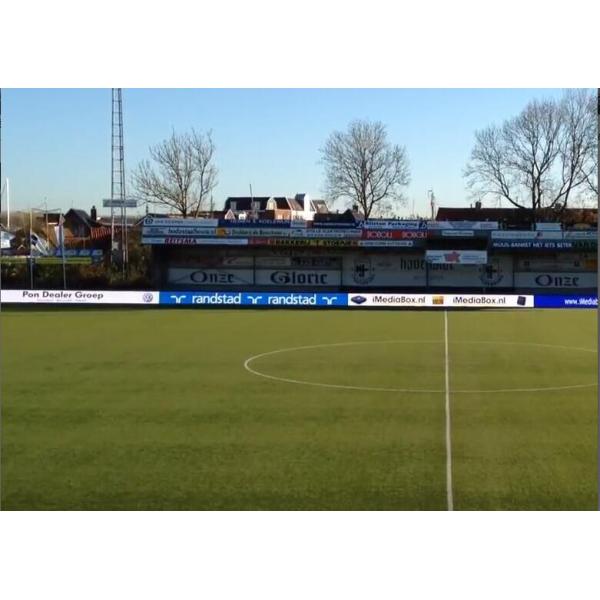

Sports Perimeter Display Cases:
