P6mm Fixed Installation Billboard LED Display,Full Colour SMD Outdoor Led Screen
Description
There are low weight.Both module frame and cabinet can be made of die-casting aluminum,much reducing the screen weight.Both Front and Rear service.Good heat dissipation;No matter for cabinet or for module frames,they are both die-casting aluminum,making sure of good heat dissipation.So screen can still work well in high temperature.
Advantage
High quality and durable with a competitive price.There are IP65 standard with high ingress protection level. It can work outside for a long time.Wide viewing angle with 140° in vertical and 140° in horizonal.
High refresh rate: over 1500Hz / s, no scan lines when shooting videos and pictures.Better strongness and precision.
Application
Suitable for most applications with fixed installation LED displays,such as outdoor advertising airport,school,highway,bus station,square,etc.
| Model | OD-6 |
| Pixel Pitch | 6mm |
| Pixel Density | 27778 pixels/m2 |
| LED Type | SMD3535 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 1152mm*960mm |
| Cabinet Resolution | 192*160pixels |
| Cabinet Weight | 65kg |
| Cabinet Material | cold steel |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/6 scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 300w/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH/ 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
Product Tags:
|
|

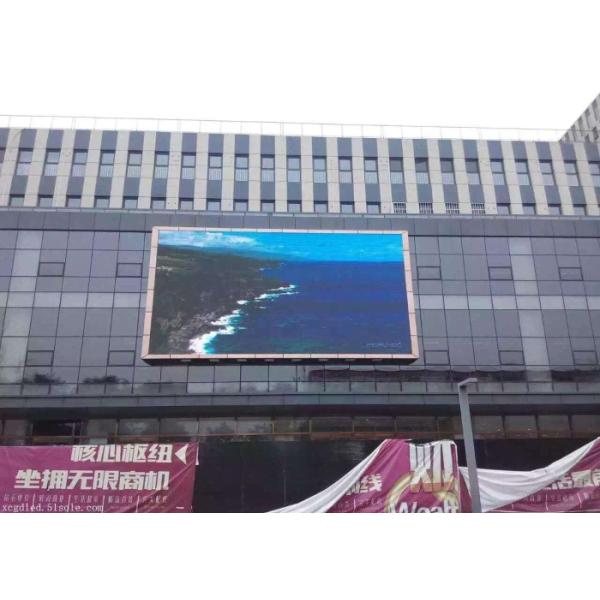

P6mm Fixed Billboard LED Display Roadside Digital Signage For Bus Station Images
|
