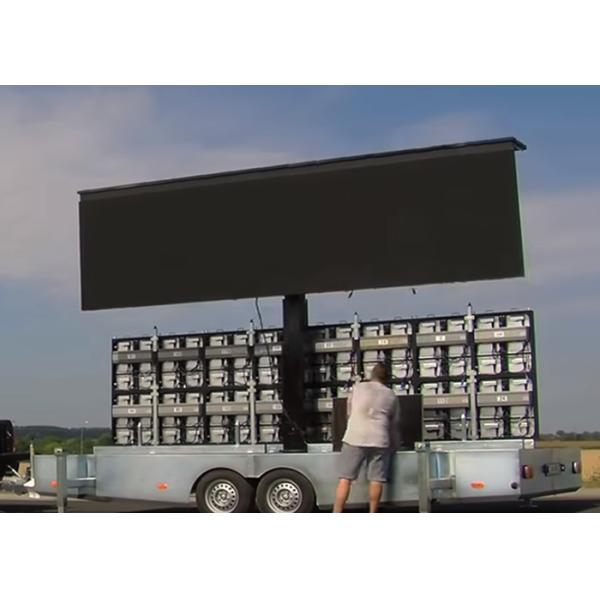

High Gray Scale Mobile LED Screen Moving Trailer Video Display Waterproof /Dustproof Panel
Features
1. Convenient: It designed as a fully integrated mobile LED video solution.The unit is engineered for rapid setup and teardown and features an even-ready control room.
2. Adaptability:No matter it is sunny or rainy, it does not affect the movement of the truck and the viewing effect of the audience.
3. High flatness precision: with die-cast aluminum technology, the tolerance of cabinet and module are controlled within 0.1mm, screen flatness and split joint gap are controlled within 0.5mm.
4. Movement:The product has good shockproof due to the mobility of the truck.For mobile trailer led display, Its main feature is high level anti-shake, this is very important for movable led screen.
5. Clear view:High refresh, high gray scale, high color contrast, and high quality picture effect.
6. Ingress protection:The ingress protection of the front is IP65 as well as the IP54 of the rear,which meets the standard of outdoor LED Display.
7. Customized:we can customize the screen size for any trailer model to accommodate the needs of individual customers at any event in as little time as possible.
Details
| Pixel Pitch | 8mm |
| Pixel Density | 15625 px/m2 |
| LED Type | SMD3535 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 1280*960mm |
| Cabinet Resolution | 160*120px |
| Cabinet Weight | 79kg |
| Cabinet Material | cold steel |
Ingress Protection
(front/rear) | IP65/IP54 |
| Brightness | >5500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/4 Scan |
| Power Consumption(avg.) | 250w/m2 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 1500Hz |
| Gray Scale | 16bit |
| Power Supply | AC 110/220±10%
50~60Hz |
Temperature
(operating/storage) | AC 110/220±10%
50~60Hz |
| Humidity(operating/storage) | 10%~90%RH
10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥100000 Hours |
| Pixel Failure | <0.0003 |
Images
Advantages
1. High brightness and clearly display effect with easy use control system which allow you to operate easier.
2. High refresh, high gray scale, high color contrast, and high quality picture effect.
3. A features of it is the wide audience range from one place to another due to the mobility of trucks.It also relieved the district restrictions,attract more people to watch.
4. Wide viewing angle (140° in horizontal and 140° in vertical).
5. 100% QC inspection before Shipment. Module surface flatness ± 0.5mm, the entire screen has good flatness
Services
We can offer service for customized products and can provide onsite installation and testing service.
We provide 2 years warranty and free repair service for our products sold.
We also provide free training to customers' engineer.
Tips
Payment:We accept the L/C,T/T,Western Union.
Shipment: We will ship within 20-25 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.
Package:We usually pack the product in a wooden box or flight case.
Product Tags:
|
|
High Gray Scale Mobile LED Screen Trailer Video Display Customized Size Images
|
