10mm Pixel Pitch Outdoor LED Billboard High Brightness Waterproof IP65
1. Nationstar LEDs, long lifetime with high brightness 6500nits, visible from every direction even face to sunshine directly.
2. SMD technology, LEDs ensure a large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3. Cabinet design lightweight, side handle for easy carrying and assemble job.

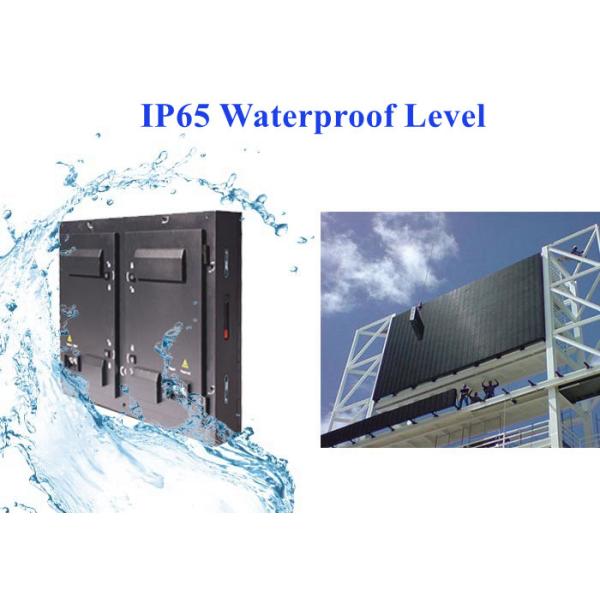

4. IP65 waterproof and dust resistance, durable for any weather conditions.
5. Meanwell brand power supply, saving energy and high efficiency.
6. Digital process: 16bits, contrast ratio 2,000:1, vivid color.
7. Front access makes easy maintenance.
8. There can improve the resolution by changing the new module with a smaller pixel, no need to purchase a new screen,
this can save lots of costs.
Specifications:
| Pixel Pitch | P4.81 | P6.67 | P8 | P10 |
| LED Type | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Size(mm) | 250x250 | 320x320 | 256x256 | 320x320 |
| Panel Size(mm) | 1000x1000x150 | 1280x960x150 | 1280x768x150 | 1280x960x150 |
| Module Resolution(WXH) | 52x52 | 48x48 | 32x32 | 32x32 |
| Cabinet Weight | 65/45kg |
| Cabinet Material | Steel/ Aluminum |
| Gray Scale | 16 bit |
| Contrast Ratio | 2000:1 |
| View Angle(H/V) | 160°/ 140° |
| Refresh Rate | >1920Hz |
| Brightness | >6500nits |
| IP Rating | IP65 / IP54 |
| Servicing | Front / Rear |
| Operating Temp/Humidity | -20ºC-50ºC / 10%-90% |
| Expected Lifetime | 100,000Hrs |
| Power Consumption | Average: 360W/ Panel, Max: 900W/Panel |
About us:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a professional manufacturer of technologically advanced LED displays, focusing on high-end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our main markets are among America, Europe, The Middle East, and Asia, all of our products are certificated by RoHS, CCC, CE, FCC, ETL, UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied on the long term partnership with variety channel customers over 120+ countries.
Why Choose us:
1) Well-experienced
A) our factory specialized in this field for 14 years
B) we have much experience and many cases for your projects,
2) No after sale worries.
a) we provide full process technical support for installation guidance and debugging etc service.
b) 2 years warranty and lifetime maintenance service.
c) send our engineer for onsite guidance based on your requirements
3) Save your time and energy.
A) Complete solution
B) Consider and solve potential issues before you realized.
C) Respond to you immediately for all your questions
4) Save shipping cost for you.
We have some well-cooperated shipping agents for Sea shipping; Air shipping and Express. they
could give their most competitive price.
5) Almost all your questions we have already experienced and well solved, So for all your issues, we could provide professional solutions.
