6500 Nits IP54 SMD3535 P16 Sports Perimeter LED Display

Product Categories
Shenzhen Bako Vision Technology Co., Ltd
Contact Now

6500 Nits IP54 SMD3535 P16 Sports Perimeter LED Display

Brand Name : Bako Vision

Model Number : BSP Series

Certification : CCC CE FCC

Place of Origin : China

MOQ : 1sqm

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 8000 sqm/month

Delivery Time : 15~20 days

Packaging Details : Plywooden case/Flight case

Pixel configuration : SMD3535

Panel Material : Aluminium

Single cabinet weight : 70/50kg/sqm

Processing : 16bit

Contrast ratio : 2000:1

IP rating（front/rear） : IP65/IP54

Contact Now

BSP Series



Technical specifications:

BSP-8 BSP-10 BSP-16
Physical Pitch 8mm 10mm 16mm
Pixel Configuration SMD3535 SMD3535 SMD3535
Pixel Density 15,625pixels/m² 10,000pixels/m² 3,906 pixels/m²
Module Dimensions(W*H)(mm) 256*256 320*320 256*128
Panel Dimensions(mm) 1280*768*187 1280*960*187 1280*896*187
NO. Of Modules Per Panel(W*H) 5*3 4*3 5*7
Physical Resolution of Module(W*H) 32*32 32*32 16*8
Physical Resolution of Panel(W*H) 160*96 128*96 160*56
Panel Material Aluminium Aluminium Aluminium
Single Cabinet Weight 70/50kg/m² 70/50kg/m² 70/50kg/m²
Processing 16bit 16bit 16bit
Colour Number 281 trillion 281 trillion 281 trillion
Contrast Ratio 2000:1 2000:1 2000:1
Average Power Consumption 360W/panel 360W/panel 360W/panel
Max. Power Consumption 900W/panel 900W/panel 900W/panel
Operating Temp/Humidity -20ºC-50ºC/10%-90% -20ºC-50ºC/10%-90% -20ºC-50ºC/10%-90%
Storage Temp/Humidity -20ºC-50ºC/10%-90% -20ºC-50ºC/10%-90% -20ºC-50ºC/10%-90%
Refresh Rate >1920Hz >1920Hz >1920Hz
Brightness >6500 nits >6500 nits >6500 nits
Horizontal Viewing Angle 160° 160° 160°
Vertical Viewing Angle 140° 140° 140°
Expected Lifetime 100,000Hrs 100,000Hrs 100,000Hrs
IP Rating
(Front/Rear)		 IP65/IP54 IP65/IP54 IP65/IP54
Servicing Front/Rear Front/Rear Front/Rear

Ultimate, Outdoor, Sports Display
6500 Nits IP54 SMD3535 P16 Sports Perimeter LED Display

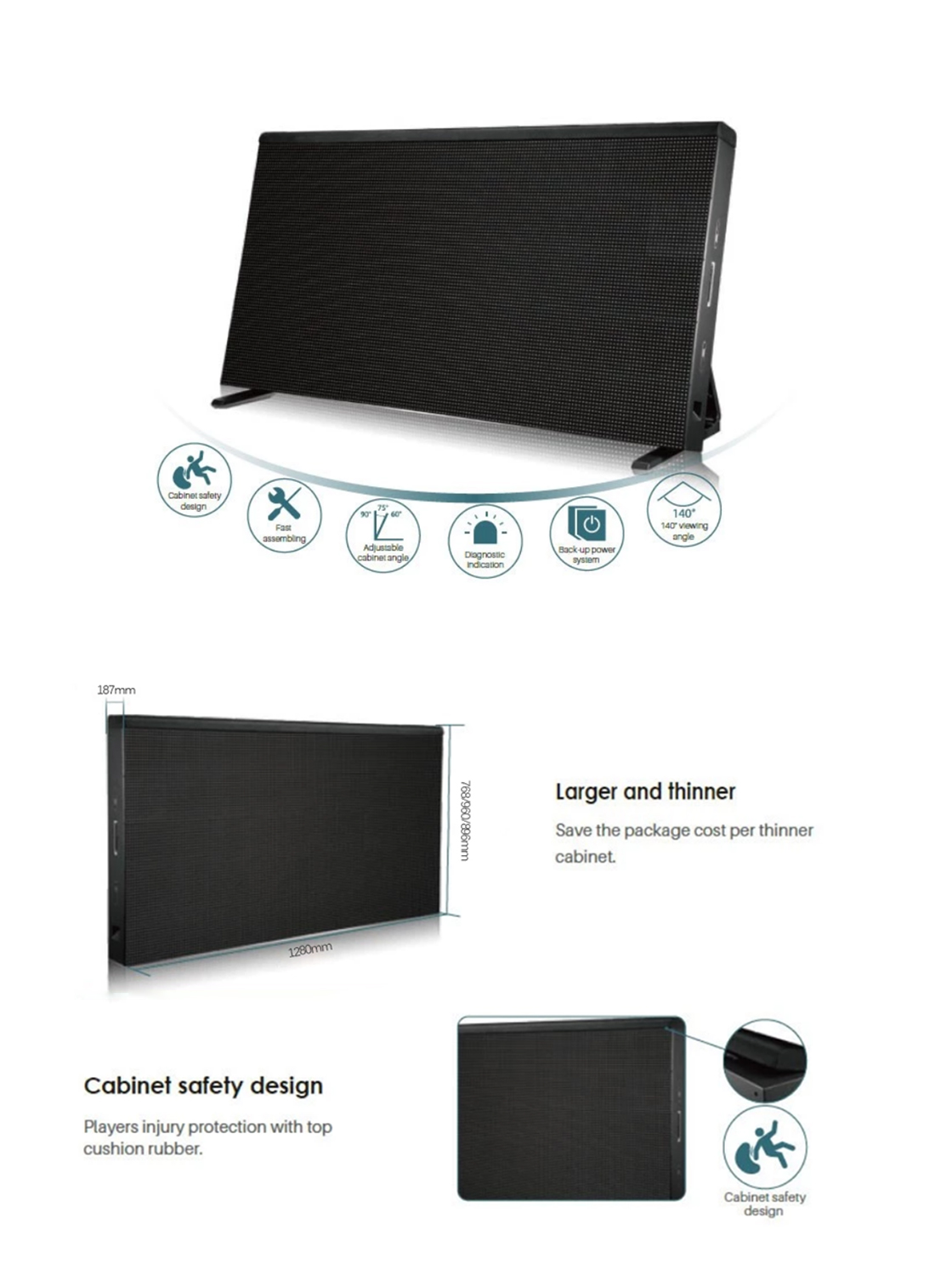

Fast to Install and Dismantle
High Refresh Rate for Live Camera
6500 Nits IP54 SMD3535 P16 Sports Perimeter LED Display

Outdoor Rated
IP65 rating for front and rear
Suitable brightness adjustable for outdoor day and night
5500-8000 nits brightness
6500 Nits IP54 SMD3535 P16 Sports Perimeter LED Display

Superior Electrical Features
Vivid and brilliant colors
16 Bit signal processing, 2500-4000Hz refresh rate
Built-in data and power redundancy for ultimate reliability

6500 Nits IP54 SMD3535 P16 Sports Perimeter LED Display

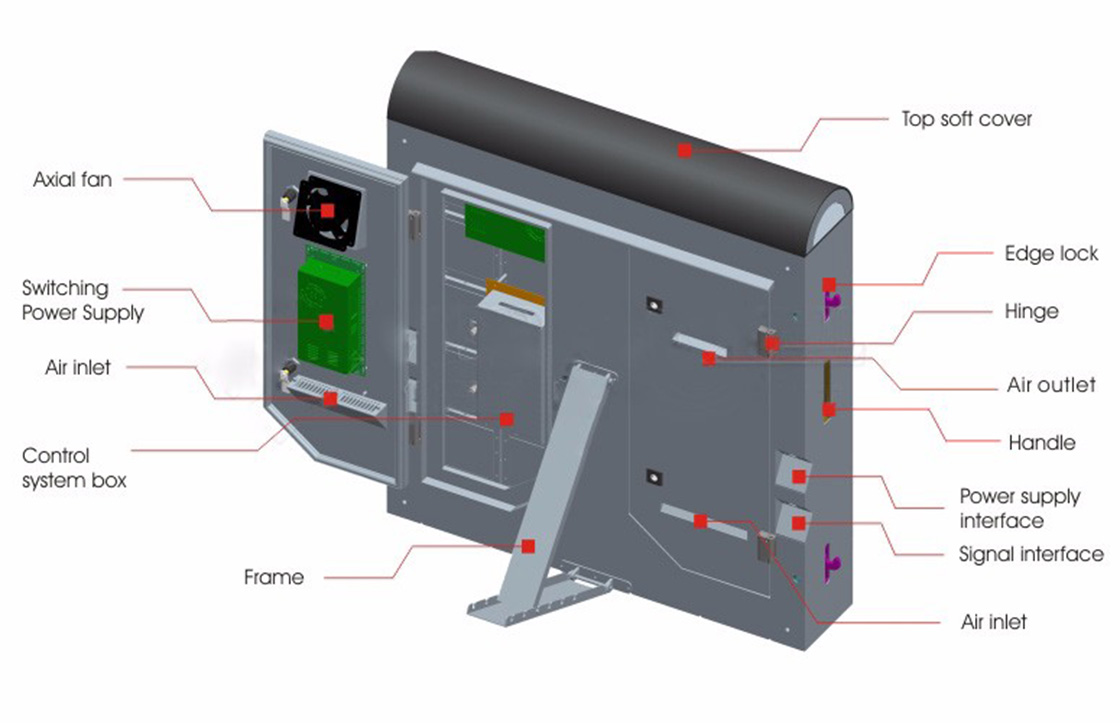

Fast Installation and Easy Maintenance
Fast lock system design guarantees a quick and easy installation
Fast access to modules, cables, power and data boxes

Versatile Dual Purpose Design
Removing the ground adjustable bracket and protection foam bumper can be transformed to be a square solid screen
Available for truss hanging, ground stacking, wall mounting

6500 Nits IP54 SMD3535 P16 Sports Perimeter LED Display



Applications:

6500 Nits IP54 SMD3535 P16 Sports Perimeter LED Display

6500 Nits IP54 SMD3535 P16 Sports Perimeter LED Display
